8 Channel NVR, 2 SATA Ports (Internal 8 Port PoE)
+ KDV
8 Channel NVR, 2 SATA Ports (Internal 8 Port PoE)

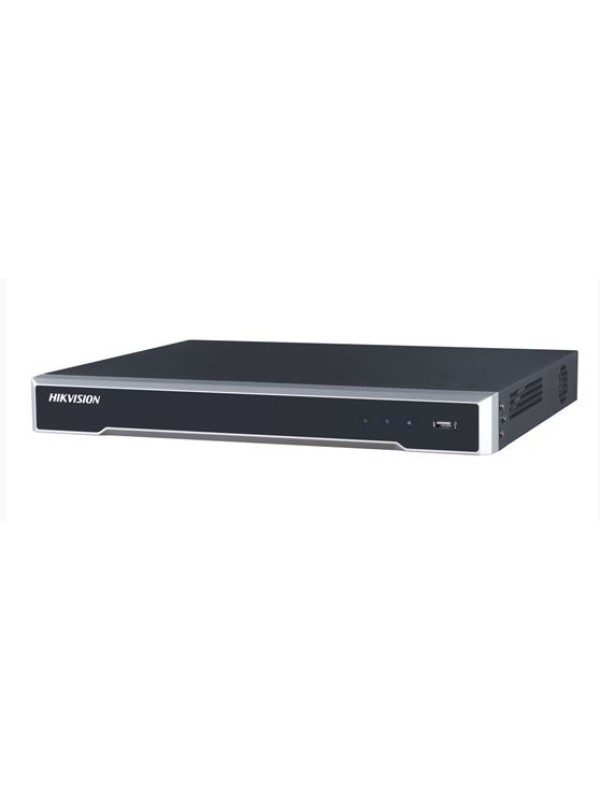

Hikvision 8 Channel NVR, 2 SATA Ports (Internal 8 Port PoE)
- 8 channel IP camera recording
- 80Mbps recording/80Mbps transfer bandwidth
- Live monitoring and playback up to 8MP
- H. 265+ recording formats, HDMI 4K & VGA monitor output
- 2x USB 2.0, 2x SATA ports (Each port supports max. 6TB)
- 1xRJ-45 10/100/1000Mbps
- ONVIF, bidirectional audio support
- Built-in 8 PoE ports
Video | |
Number of Channels | 8 channel |
Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Incoming bandwidth | 80Mbps |
Outgoing bandwidth | 80Mbps |
Two-way audio input | 1 ch, RCA (2.0 Vp-p, 1KΩ, using the audio input) |
Video Compression | |
Video Compression Format | H.265+,H.265,H.264+,H.264 |
Interface Unit | |
Network Interface | 1, RJ-45 10/100Mbps self-adaptiveEthernet interface |
Number of HDDs | 2 SATA |
HDD Capacity | 6TB |
USB Interface | 1×USB 2.0, 1×USB 2.0 |
Audio In / Out | 1 ch, RCA (Linear, 1KΩ) output |
Alarm Input/ Output | - |
General Features | |
Power Supply | 12V DC |
Operating Temperature | -10ºC to +55ºC (+14ºF to +131ºF) |
Dimension | 385 × 315 × 52mm (15.2"×12.4"×2.0") |
Weight | 1.8kg (4.0lb) |
